LUMIN M1 analogue input adapter

LUMIN M1 comes complete with an analogue input adapter, allowing the connection of external analogue sources for added flexibility.

Connect either the phono connectors or the mini-jack to your source.

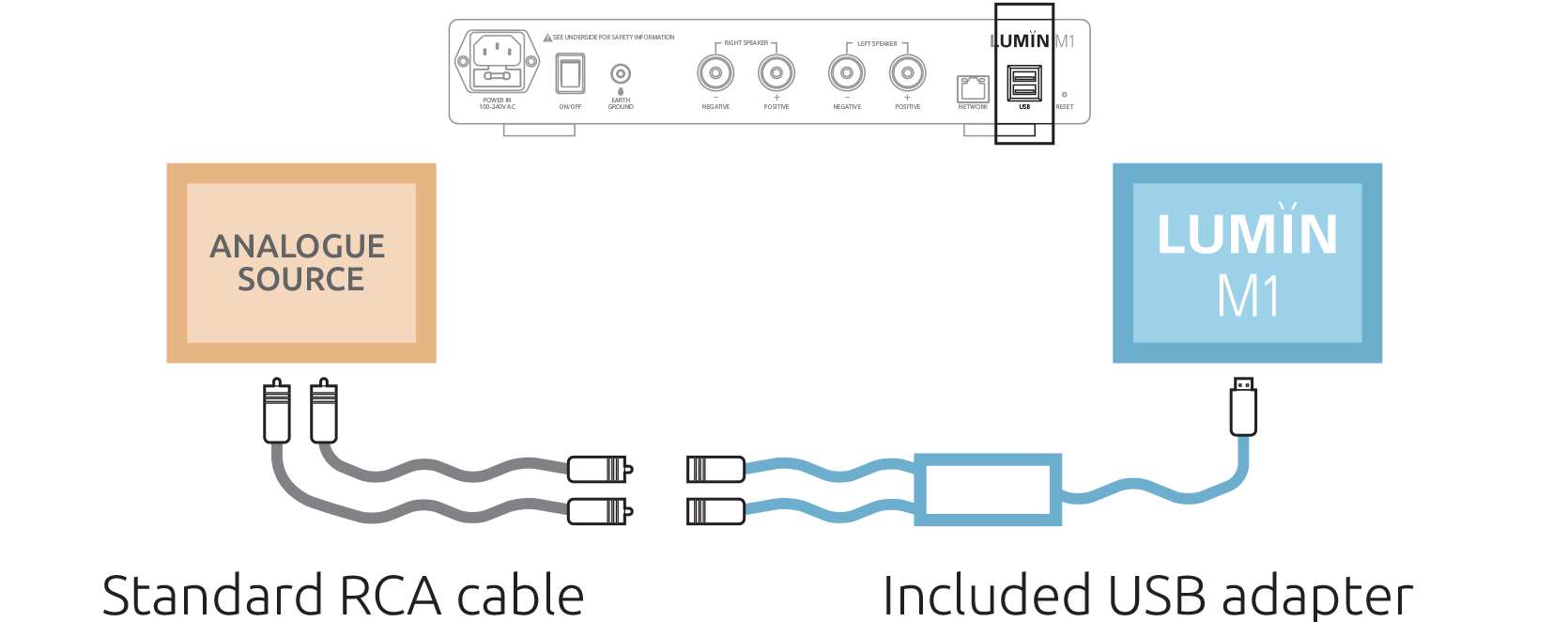

Phono connection

Use a standard phono interconect to link your source device to the LUMIN M1 adapter.

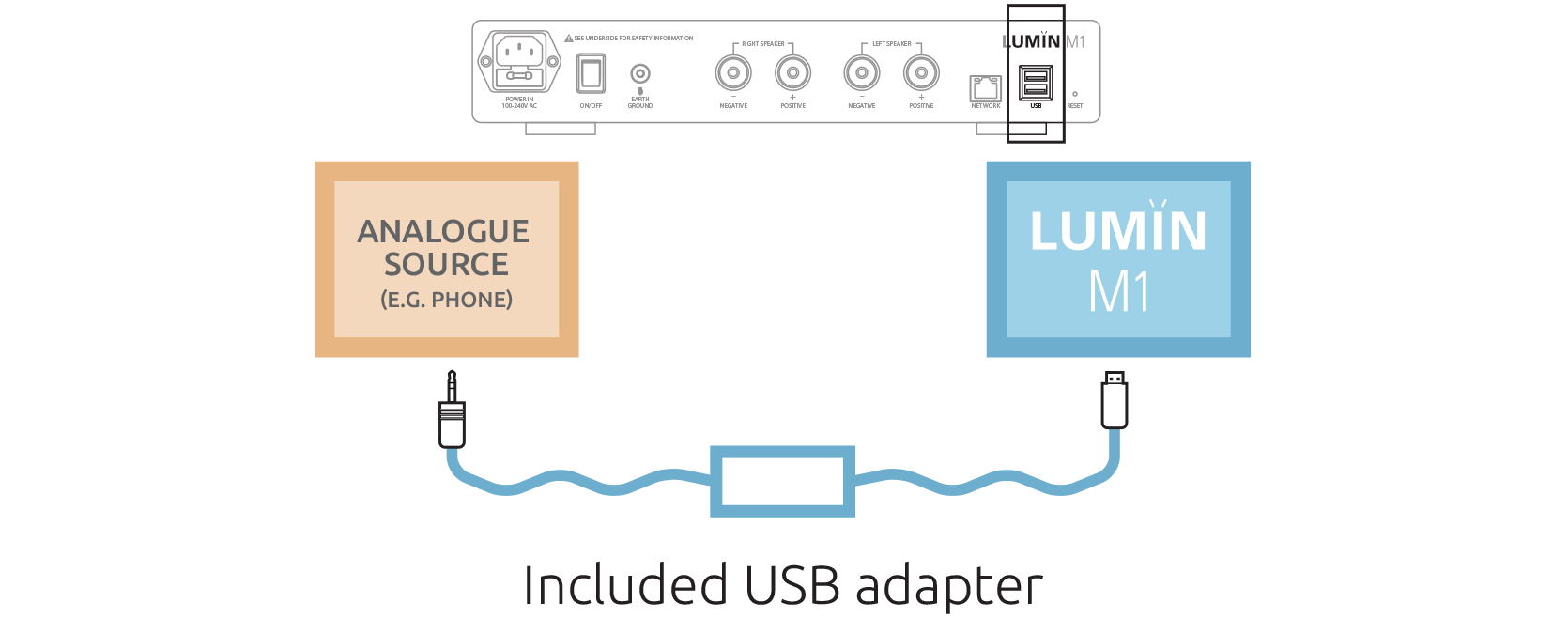

Mini-jack connection

The adapter also includes a male mini-jack for convenient direct connection to mobile phones, radios or MP3 players.



Selecting the input from the LUMIN App

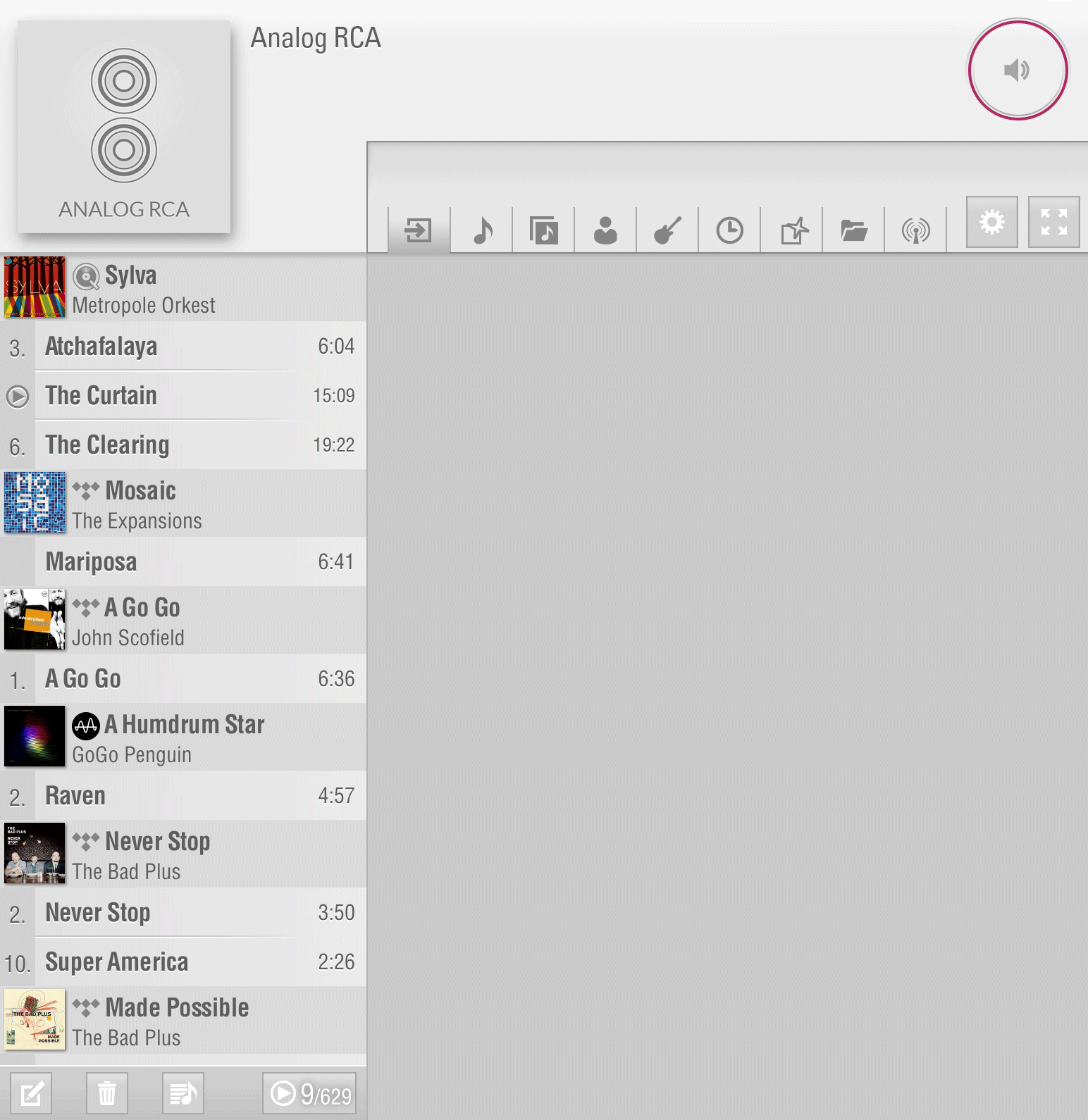

When the USB Analogue input adapter is connected a new browse tab appears on the left:

After selecting this tab, normal Playlist playback will be paused and LUMIN M1 will play whatever is being sent to the analogue input.

The Analog RCA input icon is shown in the Now Playing area and a cut-down version of the rest of the interface is shown.

To resume normal Playlist playback, select any song in the playlist.
